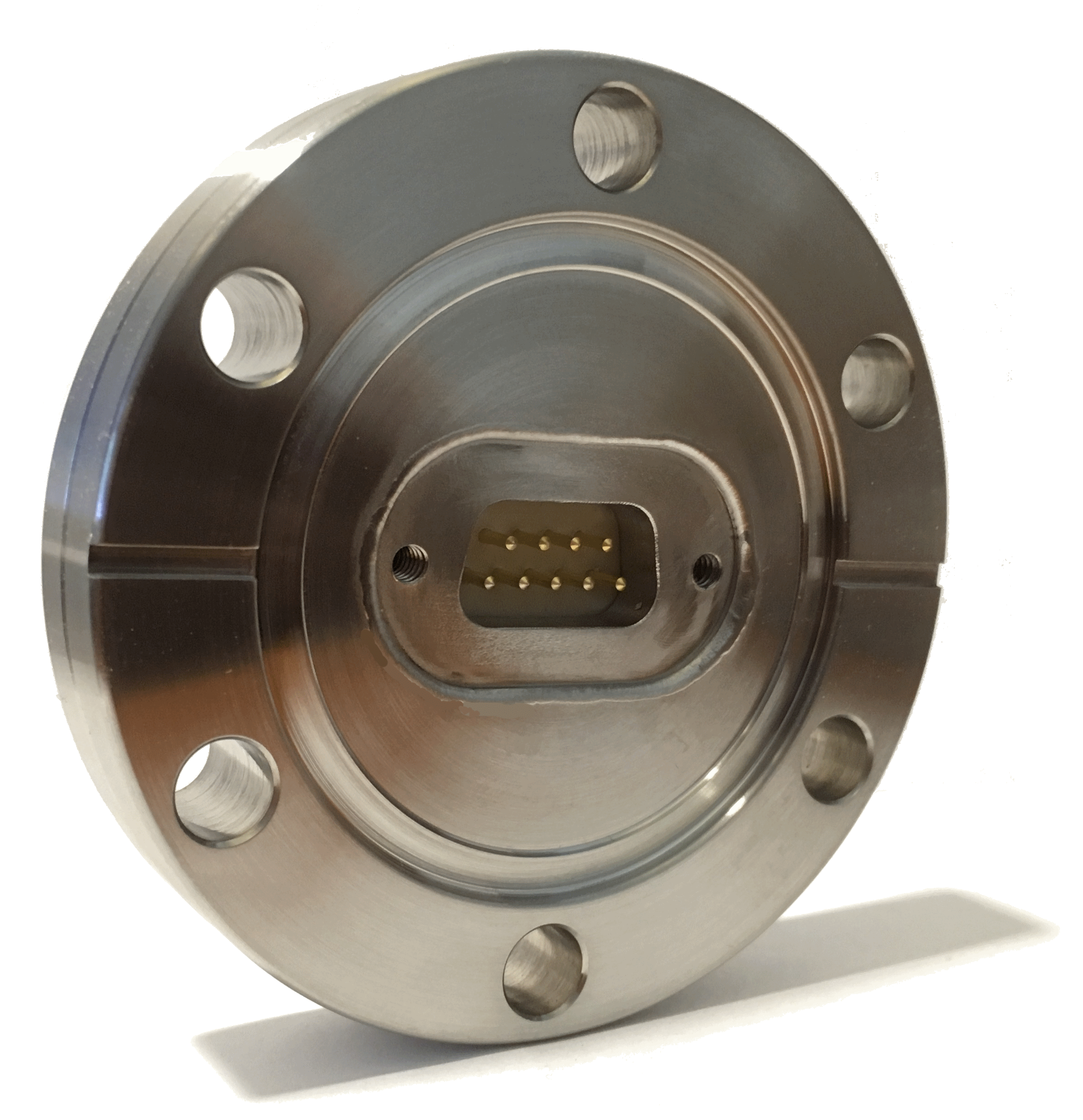

Subminiature D MIL-C-24308 feedthroughs, Male/Male

  Technical specifications:

Compliance:   MIL-C-24308

Pin diam:        1 mm

Pin material:   NiFe gold plate

Shell:              AISI 304

Insulator:        PEEK®

Voltage:         500 V DC

Current:         5 A max, 3 A per pin, all pins loaded

Working T:     -40°C +250°C

Leak rate:      UHV <5x10-10 mbar l/s He

Leak rate:      HV <1x10-9 mbar l/s He

Different configurations available upon request. Please contact our sales office.
